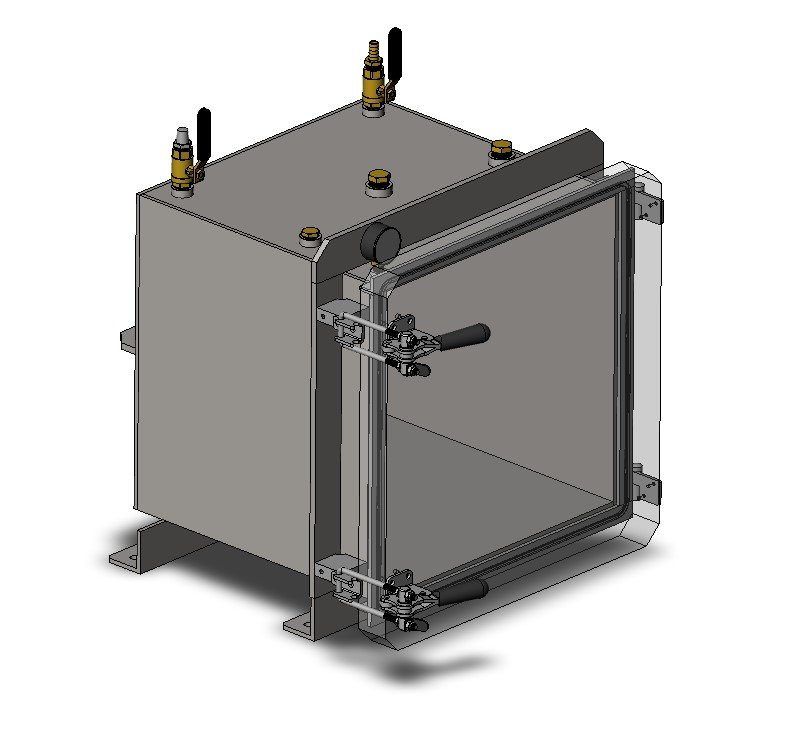

18" Stainless Steel Vacuum Chamber
SKU: SVCSS18
Condition: New
Availability: Ships 2-4 weeks from receipt of order
Internal Dimensions: 18" W x 18" H x 18" D
Chamber & Door Material: Stainless Steel & Acrylic
Door Seal: Silicone
Vacuum Range: Ambient to 10E-4 Torr
Door Configuration: Hinged
Vacuum Port: 1/2” NPT Hose Barb Fitting with manual ball valve
Vent Port: 1/2” NPT Hose Barb Fitting with manual ball valve
Gauge Port: 1/4” NPT with dial gauge
Weight: 223 lbs.
SKU: SVCSS18
Condition: New
Availability: Ships 2-4 weeks from receipt of order
Internal Dimensions: 18" W x 18" H x 18" D
Chamber & Door Material: Stainless Steel & Acrylic
Door Seal: Silicone
Vacuum Range: Ambient to 10E-4 Torr
Door Configuration: Hinged
Vacuum Port: 1/2” NPT Hose Barb Fitting with manual ball valve
Vent Port: 1/2” NPT Hose Barb Fitting with manual ball valve
Gauge Port: 1/4” NPT with dial gauge
Weight: 223 lbs.
SKU: SVCSS18
Condition: New
Availability: Ships 2-4 weeks from receipt of order
Internal Dimensions: 18" W x 18" H x 18" D
Chamber & Door Material: Stainless Steel & Acrylic
Door Seal: Silicone
Vacuum Range: Ambient to 10E-4 Torr
Door Configuration: Hinged
Vacuum Port: 1/2” NPT Hose Barb Fitting with manual ball valve
Vent Port: 1/2” NPT Hose Barb Fitting with manual ball valve
Gauge Port: 1/4” NPT with dial gauge
Weight: 223 lbs.
Main Features:
Capable of reaching vacuum levels as low as 10E-4 Torr with the proper vacuum pump. For lower vacuum levels, please contact us.
Constructed with a stainless steel body and acrylic door
Shipped in a wooden crate to ensure safe and efficient delivery.
Every vacuum chamber is helium leak tested for quality control (see drawing for more info), and each unit comes with a certificate of conformance of the leak test.
