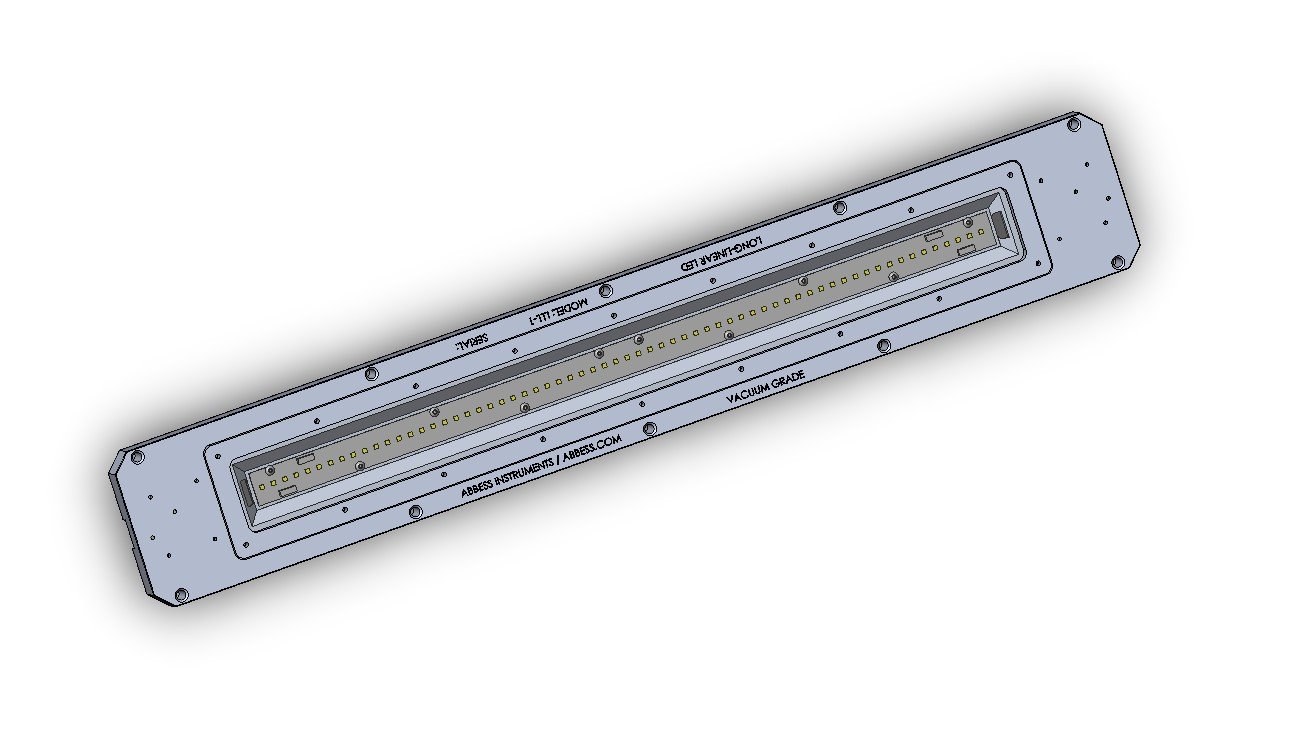

30" Long Linear Vacuum Light
Fixture Body Material: 7075 Billet Aluminum
Diffuser Material: PVDF Film
Twisted Wire Pigtails from Fixture: 20 AWG, Silver Coated – Stranded Copper, PTFE Insulated x ~6 Feet Long [Power Supply Sold Separately]
Power required: 10-13V DC, 1-1.6A
Body Dimensions: 17.5″ L x 4.5″ W x .75″ Thick (D)
Output: ~2100 Lumens (4000K Color Temp)
Watt Output: 13W
Operating Pressure: <10E-7 Torr
Operating Temperature Range: -190°C to +50°C
Max Storage Temperature Range: -190°C to +120°C
